How Does the Dyson Air Multiplier Work? Product Marketing Engineering Manager Bladeless Fan Baffles Onlookers Imagine a reverse vacuum cleaner that generates airflow of up to 55 mph. For most people who've seen the Dyson Air Multiplier, the first thought that popped into their heads was "That's really cool", the second was "How does that air multiplier work?" Given the ultra-modern design of this device, it's easy to wonder about the process that makes this "fan" function. Dyson AM01 Table Fan The Dyson Air Multiplier is a bladeless fan that provides a smooth flow of air, much like that of a constant wind breeze. It has a futuristic look very much different from traditional fans and as we found out, it works much differently as well. Although it is called a "bladeless" fan, the Dyson Air Multiplier does indeed have blades within; they're just hidden inside the pedestal stand. This is the section of the fan that draws in up to 5.28 gallons of air per second, as much as a vacuum cleaner!

In addition to the blades in the pedestal stand, the air multiplier also makes use of a brushless electric motor, which rotates the nine asymmetrically-aligned blades. do in duct air purifiers workThis provides for precise control of the speed of the fan, while staying relatively quiet compared to brushed motors. green air care air duct cleaning reviewsThe pedestal motor adds extra push to the fast flowing air and shoots it up into the ring portion of the fan.best air purifier without ozone Dyson Air Multiplier air flow compared to traditional fan The air flows through the channel in the pedestal, through a curved path, and comes out from small 16mm slits around the frame of the fan at a 16-degree angle slope.

You may think that this just causes air to blow in the shape of the surface area of a cylinder, but because of the physical laws of inducement and entrainment, this allows for the surrounding air to also become drawn in from multiple areas around the fan. In other words, picture your TV weather map; a small low-pressure region is created which actually draws the air in from behind it, like a forming tropical storm. This simultaneous push and pull of air creates a quiet, even, constant flow of cool breeze. Cutaway view of the slit of the frame Air flow demonstrating inducement and entrainment Making use of these laws, Dyson claims that the output of airflow is increased 15 times more than that taken in through the pedestal's motor, thus the name: air multiplier. The result is a filled cylinder of air flowing smoothly without the choppiness of traditional fans. The price range may be a little beyond the normal price for a fan and some users have claimed that it can be rather noisy, but the Dyson Air Multiplier provides an eye-pleasing, low power consuming fan that is safe to use around young children due to the lack of accessible rotating blades.

The reviews we've seen rave about the technology but grumble about the $199 price tag and the jet engine noise, but as connoisseurs of technology we love this new approach. Check out this cool video done by Dyson's engineers demonstrating the laws of inducement and entrainment. If you have an electronics story or project you'd like to share, please email . Robert is a graduate from Cal Poly, San Luis Obispo in Electrical Engineering. His interests include sports, movies, music, and playing with cool, new gadgets.CLEANFIX S 10 industrial dry vacuum cleaner CLEANFIX S 10 Plus industrial dry vacuum cleaner TMB DRY P 11 vacuum cleaner Noise level: 61 dB. The main filter is made of polypropylene. Tank: 11 l. Recommended operating time: 3 hours in case of uninterrupted use. Versatile and silent vacuum cleaner. The shock-absorbing ABS plastic tank makes it ideal for industrial use. The 2,5 m suction hose, the telescopic tube and the four different nozzles are standard accessories.

Only with paper dust bag.The state of the art AMETEK turbine is extremely silent while it provides 20% more suction power than the average. The 2,5 m suction hose, the two-part metal tube and the four different nozzles are standard accessories. Only with paper dust bag. Optional accessories are the electric brush and the HEPA filter. It represents a new generation electric broom with high filtration volume. Thanks to its design it is multifunctional: it is an electric broom, a vacuum cleaner and a carpet cleaner. It contains two suction turbines, that are individually switchable, and therefore the required suction power can be adjusted more properly. Great performance and long lifetime are guaranteed. Air Flow: 5 800 l/min, negative pressure: 2 200 mm, power of suction motor: 2*1 200 by pass, noise level: 77 dB, tank capacity: 78 l, weight: 27 kg, dimensions: 570*610*960 mm Wet and dry vacuum cleaner with three motors for the cleaning of hard surfaces. The 58 litre neat tank capacity qualifies for all kinds of jobs.

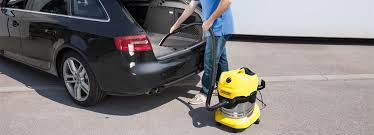

The AMETEK turbine is equipped with two by-pass turbines that prevent it from overheating even if used continuously. The 2.5 m suction hose, the metal tube and the four different nozzles are standard accessories. Pick-up of dust is ensured by the .50 ø suction hose. Optional accessories are the paper filter bag, the dust bag adapter, the fixed nozzle and the tank releaser. Total Weight: 30.5 kg Rated Power: 3000 W Noise level: 66 dB(A)Air Flow: 159 litre/sec. The WD4 Premium multi-purpose vacuum cleaner is powerful and robust while still being energy-efficient. It is perfect for cleaning up messes, and making light work of rubble and sawdust. Leave the dusty broom, or the old dustpan and brush behind – the only device you’ll ever need to clear your cellar, garage and workshop is the WD3 P vacuum cleaner from Kärcher. Robust, compact and powerful; these are just a few words to describe Kärcher’s WD2 vacuum cleaner. From unblocking sinks to picking up dirt, the WD2 can be used throughout the home.
